Hello, Welcome to FCTEL Technology Co.,Ltd
National service hotline:+086 0571-87007055/56/57 CN

WE ONLY FOCUS ON TRANSMISSION AND ACCESS

Products center

USB 3.0 Fiber Modem

Type:FCP-U3T/FCP-U3R Message

Description:1*LC/SFP；1/4*USB3.0;Transmit 1*USB3.0 over fiberand expand to four USB interfaces at the remote.

Product Description
         This series of USB3.0 optical terminal consists of transmitter and receiver. The USB interface (USB2.0) of the host is extended to the far end through single-mode or multi-mode optical fiber and expanded to four USB ports. The maximum transmission distance is 80km (single-mode fiber). It supports 3.0 types of high-speed cameras hard drives printers scanners audio devices touch screens game controllers and other devices and does not support usb2.0/usb 1.1 downward. The products can be used in many fields like: video conference multimedia information release government departments medical system commercial exhibition multimedia function hall security monitoring public utilities and so on.
Functional Properties
◆ It is compatible with USB3.0 protocol and supports USB camera printer USB disk scanner touch screen and other devices;
◆ Speed: 5Gbps / s no delay ，don’t support USB2.0/USB 1.1;
◆ Transmission distance (multi-mode): 0-300m，single mode is 0-80KM；
◆ The optical fiber is extended to the far end to be 4 USB ports with the maximum total current of 2000mA;
◆ Transmission characteristics: USB3.0 real-time transmission;
◆ Four USB 3.0 interfaces can be connected to USB hub extension;
◆ Low RF / EMI suitable for sensitive electromagnetic environment applications;
◆ Optical fiber transmission no need to drive compatible with any system it can work as long as you plug in power;
◆ Optical power supply：AC220V、DC-48V/DC24V.
Technical Parameters
◆ Fiber
Fiber port：1
single core/ dual core
Connector：LC(SFP)
Wavelength:850nm/1310 for multi mode;1310nm/1550nm(single mode)
Transmission distance: 0~80Km（normally 0-10KM）
Typical output power:
Single mode 1310/1550nm：≥-9dBm
Multi mode 850nm：-18dBm
Multi-mode 1310nm: -25dBm
Receiver Sensitivity：-28dBm~- 40dBm
◆ USB3.0
Standard: USB3.0
Rate：5Gbps/s
USB3.0 input：1*USB3.0 A type female plug
USB3.0 output：3*USB3.0 A type female plug
Total current: Max 2000mA
◆ Working environment
Operating temperature：-10℃—+60℃
Storage temperature：-40℃—+85℃
Storage humidity：0%—95%（non-condensing）
MTBF：   ＞100000 hours

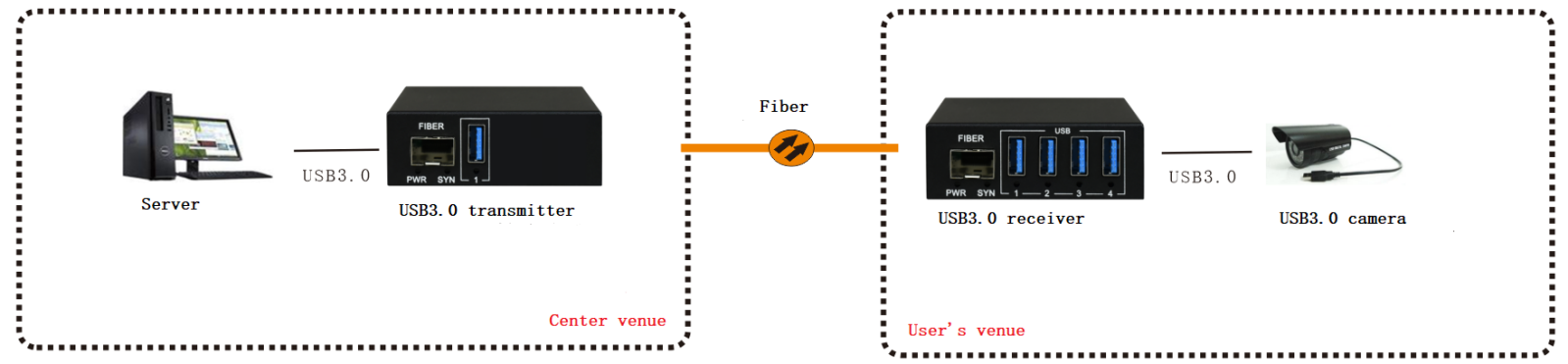

Application Scheme
USB 3.0 Fiber Modem
?
