Hello, Welcome to FCTEL Technology Co.,Ltd
National service hotline:+086 0571-87007055/56/57 CN

WE ONLY FOCUS ON TRANSMISSION AND ACCESS

Products center

64 channel voice over ethernet(IP)

Type:FCT-O64/FCT-S64 Message

Description:The converter encapsulates voice data in IP data packets and supports UDP encapsulation to realize the conversion of 1-64 voice services to two 100M Ethernet networks. It can communicate on the same network segment or different network segments via ro

Product Description
  The converter encapsulates voice data in IP data packets and supports UDP encapsulation to realize the conversion of 1-64 voice services to two 100M Ethernet networks. It can communicate on the same network segment or different network segments via routers.
Functional Properties
◆ provide Console (RS232) management interface convenient for installation;
◆ Ethernet interface rate of 10M / 100M full / half duplex adaptive;
◆ support automatic recovery after power off or network off ;
◆ support Ethernet packet disorder recovery and cache to resist network delay;
◆ adjustable frame length to balance the bandwidth and transmission delay;
◆ based on hardware design quick start;
◆ Voice port support FXO / FXS / two /four-wire EM / two-wire audio / magnet telephone interface FXO port and program-controlled switches docking FXS port and the user's telephone connected;
◆ Voice FXO / FXS access support for caller ID function / reverse polarity billing / fax function;
◆ telephone interface support mutual number allocation function;
◆ Support Console serial port network management and WEB network management;
◆ A variety of power options: AC220V DC-48V / DC24V etc . support AC + DC; AC + AC; DC + DC dual power backup mode;
Technical Parameters
◆  E1 Interface
    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;
    E1 Impedance:             75Ω (unbalance) 120Ω (balance);
    Jitter tolerance:            In accord with protocol G.742 and G.823
    Allowed Attenuation:   0~6dBm
◆  Ethernet interface (10/100M)
    Interface rate:              10/100 Mbps half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096
    Connector:                  RJ45 support Auto-MDIX
◆  Power
    Power supply: AC180V ~ 260V；DC –48V；DC +24V
    Power consumption: ≤10W
◆  Dimension
    Product Size: Mini Type    216X140X31mm(WXDXH)
            Simple packaging:   274X193X84mm(WXDXH)
            Piece Weight :    1.25KG
◆  Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

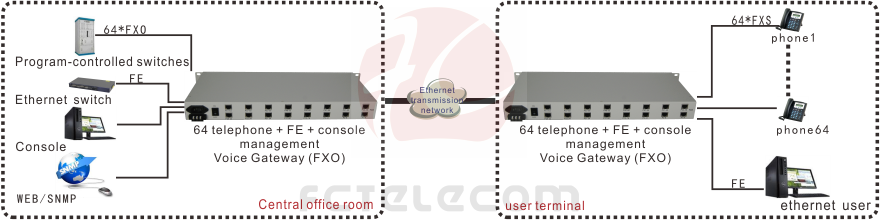

Application Scheme
DataSheet Download
?
