4FE Configurable VLAN Fiber Media Converter

Type:FCM-F4C1 Message

Description:4 * FE+1 * 100base-S/LX Ethernet Switch，Console，VLAN

Product Description
                   The optical fiber transceiver is optical transmission VLAN switch. It has 5 switch interface an interface is optical fiber interface can extend local LAN through this interface. Each switch interface can divide VLAN. There are two ways of dividing VLAN: Division of VLAN base PORT this method does not affect the remote device; 802.1Q VLAN Division at this time the local and the remote interface can be divided into the same VALN. The division of VLAN can be controlled by Console port. Device provides Console port supports Terminal control device
Functional Properties

Ø Automatically adapt to 10Mbps and 100Mbps environment upgrade network easily;

Ø   Device provides 4 Ethernet UTP 1 Ethernet optical port

Ø Support full-duplex and half duplex network communication with auto-negotiation capability;

Ø   The Ethernet interface supports jumbo frames (1916bit) which can match with the switch product complied    with IEEE802.10 protocol

Ø   Support UTP cross connection switch optional convenient for system debugging and setup

Ø   Division of VLAN base PORT this method does not affect the remote device

Ø   802.1Q VLAN Division at this time the local and the remote interface can be divided into the same VALN

Ø   Device provides Console port supports Terminal control device

Ø   Ethernet port priority setting

Ø   Support SNMP Network Management

Technical Parameters

 u  Ethernet UTP Interface

    Interface rate:              10/100 M half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX

u   Optical Ethernet interface

    Wave Length:          1310nm 1550nm

    Interface rate:              100 M half/full duplex

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  FC/SC

    Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors fittings and patch panel.

   Transmission distance may also be limited by fiber optic bandwidth.

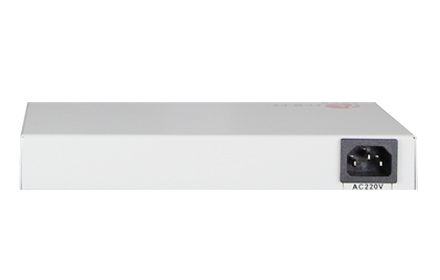

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size :       216X140X31mm( WX DXH))

    Simple packaging : 274X193 X84mm ( WX DXH)

   Piece Weight: 1.8KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

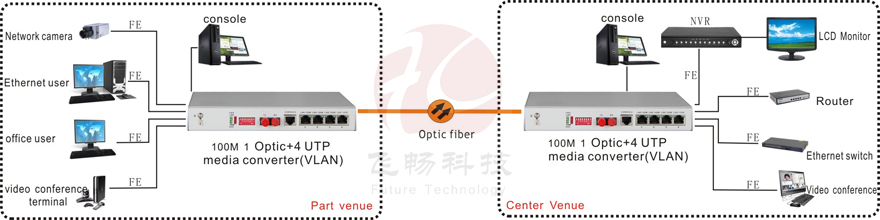

Application Scheme

Applications



DataSheet Download
?
